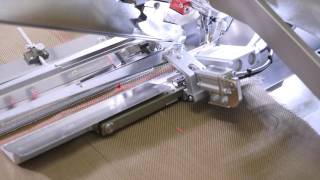

Universal pocket machine for processing slotted pockets "in a frame" and "in a leaf" with or without a valve, straight and inclined, internal and external, as well as pockets with pattern matching BASS 3204 (3203) ASS

Ready-made solutions :

T - for processing straight slit pockets on single and double-hemmed trousers with and without flap.
J1 - for processing outside and inside straight and oblique jacket pockets.
J2 - for processing inside straight jacket pockets with a zip and two piping.
B - for finishing outside pockets on striped jackets (striped stripes).

The BASS 3204 is an enhanced version of the BASS 3203.

• Stitch length, sewing speed and travel speed can be programmed individually for each pocket.
• Mechanisms for moving the pocket clamp, central and corner knives have independent drives.
• The movement of the pocket clamp and corner knives is automatically provided by stepper motors.
• The ability to store in memory sewing operations for the manufacture of 30 types of pockets.
• The pocket is sewn at high speed.
• The valve length is automatically monitored using a photosensor.
• The sequence of operations is reduced to a minimum due to the excellent design of the machine.
• The machine head can be tilted for easy maintenance.

Requires connection to compressor.

Specifications :

• BROTHER B8422-403 sewing head or
  BROTHER B8452-403 with separate needle bar
• The end of the seam can end with a back bartack or overstitching.
• Stitch length 0.5-3 mm
• Sewing speed 3000 rpm
• Needle system 134-35, # 80-120
• Pneumatic thread trimmer
• Automatic Feeder
• Automatic seam length control sensor
• Microprocessor control unit with LCD display
• Upper thread breakage sensor.
• Pocket position can be conveniently positioned using 3 independently programmable laser marks.
• Microprocessor controller with LCD display and memory chip for data backup.
• The movement of the pocket clamp is automatically provided by a stepper motor.
• The central knife has an independent electric drive.
• 6 tilting knives for side trimming.
• Power supply 220 V, 50/60 Hz
• Power 0.7 KW
• Compressor requirements 6 bar
• Height-adjustable table 85-1150 mm
• Dimensions 1650 x 800 x 1170 mm
• Weight 200 kg (* 220 with stacker)
• Productivity 2000-2400 items / 8 hours

Additional options :

• 10-13. Attachment to the pocket loop clamp.
• 10-14. Additional table to the left of the operator for easy loading of jacket parts.
• 10-28. A device for a single edging of trouser pockets (double is supplied as standard).
• 10-29. Tool for single edging of jacket pockets.
• 10-20. Additional fixation device for centering along the seam.
• Backing tape feed unit (keeps the shape of the pocket).
• Manual loader for pre-cut zippers (if the release is small).
• Automatic zipper feed from roll cut with simultaneous stitching with single or double stitching.
• 10-19. Automatic changeover device from single to double edging.
• 10-15. Automatic roll to take the product to the stacker.
• Stacker for large items.
• Side table for leveling the garment before laying (the garment does not wrinkle).
• 10-17. Stacker for small items.
• 10-54. Protective fence.
• 10-33. Vacuum extraction for better holding of the product on the table (powered by a central air supply system).
• 10-34. A centrifuge for extraction presses the product against a table with an absorber (if the plant does not have a central air supply system).
